High-Performance Bronze Bearings: Unlocking Maintenance-Free Performance in Molds & Dies

In precision manufacturing, molds and dies are the heart of production. For high-intensity industries like plastic injection molding, die casting, and stamping, any unplanned downtime translates directly into lost revenue. The traditional reliance on grease and oil lubrication has long been a critical bottleneck, creating persistent challenges with maintenance, contamination, and component wear.

This is where self-lubricating bronze bearings—engineered with embedded solid lubricants like graphite—offer a transformative solution. By eliminating the need for external lubrication, they address the industry’s core pain points. This article explores the strategic application of different bronze alloys in key mold components, backed by performance data and industry cases, to demonstrate how they pave the way for more efficient and reliable manufacturing.

---

1. The Core Challenge: Why Traditional Lubrication Fails in Modern Molds

The operating environment inside a mold is unforgiving. Traditional lubrication methods often struggle to cope with:

• Guidance Precision Decay: In high-cycle reciprocating motion, the oil film on guide pins and bushings can break down under immense pressure and speed. This leads to accelerated wear, increased clearance, and a loss of the precise alignment critical for part quality.

• Galling and Seizure: Under heavy loads and slow or intermittent movements—common in slides and lifters—lubricant can be squeezed out, causing metal-to-metal contact. This results in galling (a form of adhesive wear) and can lead to catastrophic component seizure.

• Contamination Risk: For industries producing medical, food-grade, or optical parts, any lubricant leakage is a critical contamination risk, leading to scrapped batches. In all environments, lubricant attracts dust and debris, forming an abrasive paste that accelerates wear.

Self-lubricating bearings solve these issues at their source by integrating the lubricant directly into a robust metal matrix, ensuring consistent performance under the most demanding conditions.

---

2. Material Selection: The Engineering Behind the Alloy

The performance of a self-lubricating bearing in a mold is dictated by its base alloy. Choosing the right material requires a precise match between the alloy’s inherent properties and the specific mechanical stresses of the mold component.

Technical Advantage: Our self-lubricating bearings utilize solid lubricant plugs (typically graphite) systematically embedded into the base alloy. During operation, these plugs deposit a “transfer film” onto the mating shaft or plate. This solid, low-shear boundary layer ensures a consistently low friction coefficient (μ ≈ 0.08 – 0.16) and prevents metal-to-metal contact, even without external oil or grease.

---

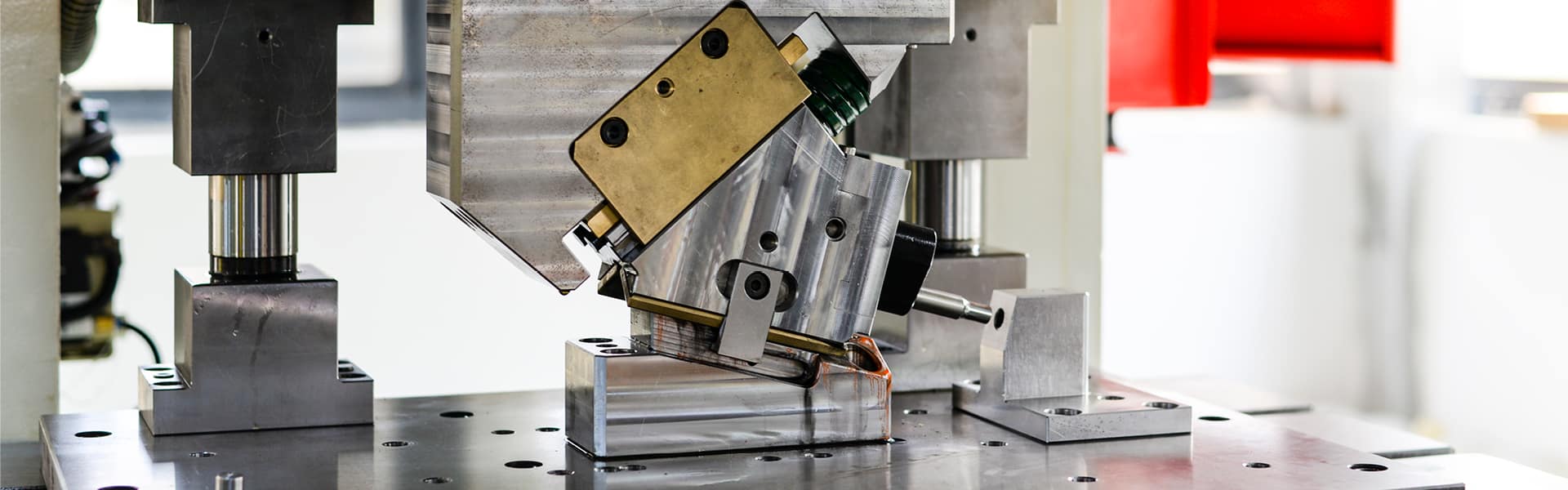

3. Strategic Application Zones in Molds & Dies

3.1 Guide Systems: The Core of Precision

Guide pins and bushings endure relentless, high-frequency reciprocation. Any wear increases clearance, compromising part accuracy and leading to flash.

The Solution: Here, graphite-plugged C95400 Aluminum Bronze is the optimal choice. Its exceptional hardness and low thermal expansion prevent the “pounding out” effect seen in softer materials. The bearing surface maintains its integrity over millions of cycles, ensuring consistent mold alignment without the need for grease, which can attract abrasive dust and debris.

3.2 Slide & Lifter Systems: Managing Extreme Forces

Cam slides, core pulls, and lifters are subjected to immense side loads and shock forces during actuation. Traditional greased plates can experience “stick-slip” motion, causing galling and seizure.

Oilless Advantage: We specify C86300 Manganese Bronze for wear plates and slide components. This alloy’s immense compressive strength absorbs the shock loads without deforming. The embedded graphite provides a constant, low-friction surface that ensures smooth, chatter-free actuation, even under heavy loads. This eliminates the risk of component seizure and protects the integrity of expensive mold cavities and cores.

3.3 Ejection & Pivot Points: The Unsung Heroes

Ejector guide pins and lifter pivot points often operate with short, oscillating movements. This “fretting” motion is notoriously difficult to lubricate with grease, leading to rapid wear in hard-to-reach areas.

The Solution: CuSn12 Tin Bronze bushings are ideal here. Their superior conformability allows them to create a stable lubricant film even with minimal movement. This prevents the microscopic wear of fretting corrosion, ensuring the long-term reliability of the ejection system and other pivoting components without requiring teardowns for manual lubrication.

---

4. In-Action: Real-World Performance Gains

Case Study 1: High-Volume Consumer Electronics Molding

• Challenge: A leading manufacturer of high-end laptop enclosures was experiencing production bottlenecks. Their complex, multi-cavity molds used numerous slide mechanisms to form intricate design features. With cycle times under 20 seconds, traditional grease on the wear plates was breaking down quickly, causing slides to hesitate. This resulted in cosmetic defects like drag marks, leading to high rejection rates and frequent production stops for re-lubrication.

• Solution: The mold’s slide systems were retrofitted with High-Strength Brass self-lubricating wear plates and gibs. This alloy was chosen for its ability to handle the high-speed, high-pressure movement of the slides without fail.

• Results:

  • Product rejection rates dropped by over 70% by eliminating the cause of cosmetic defects.

  • Production uptime increased by 15% as the need for mid-production lubrication stops was completely removed.

  • The consistent low-friction movement allowed a slight increase in slide speed, contributing to a more stable and faster overall cycle time, boosting total output.

Case Study 2: Heavy-Duty Appliance Metal Stamping

• Challenge: An appliance manufacturer was struggling with the short service life of their large progressive dies used for stamping washing machine side panels. The immense, off-center loads during the stamping stroke were causing premature wear on the greased guide post bushings. This led to die misalignment, which produced burrs on the finished parts and accelerated wear on the expensive cutting and forming stations.

• Solution: The standard hardened steel bushings were replaced with heavy-wall Aluminum Bronze self-lubricating bushings. This material was selected for its extreme compressive strength and superior wear resistance under severe impact loads.

• Results:

  • The die’s service interval was doubled, from 500,000 strokes to over 1,000,000 strokes before requiring major maintenance.

  • Improved part quality was achieved by maintaining precise die alignment, which eliminated burrs and reduced the need for secondary finishing operations.

  • Overall maintenance costs for the die set were reduced by nearly 50%, thanks to longer-lasting components and less frequent servicing.

---

5. Design and Implementation Insights (FAQ)

Q1: Are oil grooves necessary on self-lubricating bearings?
A: No, in over 95% of cases, they are not. The embedded graphite provides a continuous, surface-wide lubricant film through motion. Unlike traditional bearings that need grooves to distribute oil, these bearings lubricate the entire contact area naturally. Adding grooves can actually reduce the load-bearing surface area.

Q2: How long does the graphite last? What is its temperature limit?
A: The graphite wears at an extremely slow rate, transferring a microscopic, self-renewing, low-friction film to the mating surface. Its service life is designed to match or exceed that of the bronze base material. Graphite remains stable in air up to approximately 450°C (842°F), making it perfectly suited for even the most demanding high-temperature molding applications.

Q3: What fitting tolerances are recommended?
A: For optimal performance, a press fit in the housing and a running clearance with the shaft are required. A common recommendation for the housing fit is H7, and for the shaft, a f7 or g6 tolerance is typical. This ensures secure seating while allowing for thermal expansion and free movement. Always consult the manufacturer’s engineering guide for specific recommendations.

---

6. Conclusion: A Strategic Investment in Future-Proof Manufacturing

High-performance bronze self-lubricating bearings represent a fundamental paradigm shift—from a reactive maintenance culture to a proactive engineering strategy. By meticulously matching the right alloy to the unique demands of guide, slide, and ejection systems, manufacturers can achieve unprecedented levels of reliability and precision.

This technology does more than just solve wear and contamination problems; it builds the foundation for automated, “lights-out” manufacturing by drastically reducing the need for human intervention. It is an investment in a more efficient, reliable, and profitable manufacturing future.
