Enabling The Most Powerful Bronze Washer Ever Constructed
Beautifully crafted leather products.
We Are Specialists With Oilless Washers Thrust Bearing Technical Expertise, Good Oilless Thrust Bearing Service, And Excellent Delivery Precision. Highly Experienced Bronze Thrust Bearings. Cooperation With Strategic Global Partners Oilless Washer Supplier Creating More Value For Oilless Thrust Washers. Select Your Thrust Washer Bearings.
Thrust Washers – Maintenance-Free, Bronze & Graphite
Beautifully crafted leather products.
Oilless Washers Are Available In Metric And Imperial Sizes. Whether You Have Industrial, Automotive, Medical Or Aerospace Self-Lubricating Parts, Our Self-Lubricating Oilless Washers Are Up To The Challenge. Shop All Your Right Oilless Thrust Washers And Thrust Bearings.
High wear resistance oilless thrust washers
Excellent price in the oilless washer
Bronze thrust washers can resistance to dust and dirt
Oilless bronze thrust washers is cost-effective
Custom bearing Services you will need
Explore our graphite washer solutions designed to optimize your selling oilless thrust washer and oilless bronze thrust washer supplier management process.
Custom plain thrust Bearing ONLINE
Oil Free Thrust Washers – Select, configure, order.
Oilless Thrust Washers Are Available From Stock In A Variety Of Dimensions. The Oilless Thrust Bearing Provides Superior Corrosion Resistance And Strength For Extended Service Life. Get Your Oilless Washers Order Today!
No minimum order cost or quantity
Drive your Business with Graphite Thrust Washers Solutions
Low Prices On Oilless Washers & Plain Thrust Bearings Supplies From www.bearingface.com | Order Your Thrust Washers Supplies Today!
Oilless Washers Order Prompt Lead Times
- Oilless Thrust Washers With Competitive Pricing
- No Minimum Thrust Bearings Order Quantity
Related Oilless Thrust Bearings – Our Bearings drives global industry.
The self-lubricating oilless bearings supplier designs a growing, market-leading portfolio of plain thrust bearings and bronze oilless washer products.
Standardized For Oilless Washes, Thrust Bearings
Marine Premium Bronze Thrust Washers
High Quality Bronze Thrust Washers Meet The High Demands Of Your Variety Of Application. With The Per Oilless Bronze Thrust Washers Solution, You Can Ensure Proper Ship Operation And Reduce The Risk Of Downtime. Choose Your Oilless Thrust Washer Size On Our Site For Your Custom Fit.
innovative, longer-lasting oilless washers solutions
Thrust Washers Create Alternative Energy
Quality Thrust Bearing Components At Direct Prices! The wind energy bearing industry is challenged to reduce costs by improving turbine oilless thrust washers design, improving thrust washer performance & reliability – while reducing thrust bearings maintenance costs. Stay Competitive And Solve Your Oilless Thrust Bearing Technology Challenges. Request A Custom Quote!
custom made thrust washers
Self-Lubricating, Longer Life For Variety Applications
We Are Specialists With Oilless Washers Bearing Technical Expertise, Good Oilless Bearing Service, And Excellent Delivery Precision. Oilless Washer for universal use in many dry application such as die/mold, machinery,automation, construction, automobile…
Quality oilless Bronze Thrust washer
We Offer A Reliable And Efficient Delivery Thrust Bearing Service From Locally-Held Stocks For Standard, Non-Standard Or Customer Specific Oilless Washer Bronze Material With Solid Lubricants.
Quality, First Time, Every Time.
China Plain Thrust Bearing – Graphite Oilless Washers Suppliers & Manufacturers – Choose Your Oilless Washers Size & Material
Saves You Time & Money In Research, Design & Production Costs For Oilless Bronze Washer. E-Mail Now! Copper Alloy Bronze Sleeve Oilless Thrust Bearing, Graphite Washers Suppliers. Wide Thrust Washers Variety & Selection. Quality Products & Parts. Free Design Assistance. Contact Us Today.
C93200 (SAE 660) oilless washer bronze is considered the standard oil-free bearing material for light-duty applications. While easy to machine, bronze alloys are hard, strong, and wear-resistant. It also accommodates journal irregularities well and is less dependent on lubrication than other alloys. The oilless washer bronze alloy has reasonable corrosion resistance to seawater and saltwater.
Oilless Washers Typical Applications
Industrial Oilless Washer
Thrust Washers, Pumps, Bushings, Machine Parts, Main Spindle Bearings, Machine Tool Bearings, Bearings for Cranes, Trunion Bearings, Roll Neck Bearings, Rolling Mill Bearings, Linkage Bushings for Presses, Fuel Pump Bushings, Water Pump Bushings, Diesel Engine Wrist Pin Bushings, Forging Press Toggle Lever Bearings, Hydraulic Press Stuffing Box, Hydraulic Press Main Lining, Pump Impellers, General Purpose Bushings, Fittings, Pump Fixtures, Insert Bearings, Bearings.
Automotive Thrust Washers
Automotive Fittings
Fasteners
Washers
C86300 Bronze Washer Chemical Composition
*In determining copper minimum, copper may be calculated as copper plus nickel
| Cu% | Sn% | Pb% | Zn% | Fe% | Ni% | Sb% | P% | S% | AI% | Mn% | Si% |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60.00- 66.00 | 0.20 | 0.20 | 22.00- 28.00 | 2.00- 4.00 | *1.00 | N/A | N/A | N/A | 5.00- 7.50 | 2.50- 5.00 | N/A |
C86300 Bronze Washer Mechanical Properties
| Tensile Strength. min | 110 ksi | 758 MPa |
| Yield Strength @ .5% ext under load min | 62 ksi | 427 MPa |
| Elongation in 2 in. or 50 mm min, % | 14 | |
| Brinell Hardness | 223 | |
| Machinability Rating | 8% | |
C86300 Bronze Washer Physical Properties
| US Customary | Metric | |
|---|---|---|
| Melting Point-Liquidus | 1693 °F | 923 °C |
| Melting Point-SOlidus | 1625 °F | 885 °C |
| Density | 0.283 lb/in 3 @ 68 °F | 7.83 gm/cm 3 @ 20 °C |
| Specific Gravity | 7.830 | 7.83 |
| Electrical Resistivity | 130.80 ohms-cmil/ft @ 68 °F | 21.74 microhm-cm @ 20 °C |
| Electrical Conductivity | 8% IACS @ 68 °F | 0.046 MegaSiemens/cm @ 20 °C |
| Thermal Conductivity | 20.5 Btu/sq ft/ft hr/°F @ 68 °F | 35.5 W/m @ 20 °C |
| Coefficient of Thermal Expanision | 12 ⋅ 10-6 per °F (68-572 °F) | 20.7 · 10-6 per °C (20-300 °C) |
| Specific Heat Capacity | 0.09 Btu/lb/°F @ 68 °F | 377.1 J/kg @ 293 K |
| Modulus of Elasticity in Tension | 14200 ksi | 97900 MPa |
| Magnetic Permeability* | 1.09 | 1.09 |
| *Field Strength 16 kA/m | ||
C86300 Bronze Washer Fabrication Properties
| Joining Technique | Suitability |
|---|---|
| Soldering | Poor |
| Brazing | Poor |
| Oxyacetylene Welding | Poor |
| Gas Shielded Arc Welding | Poor |
| Coated Metal Arc Welding | Good |

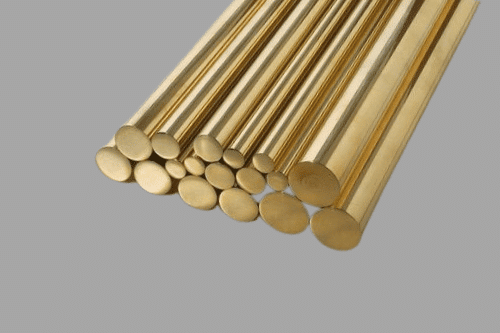

C95400 aluminum bronze thrust washer is the most common alloy oilless bearing in the cast aluminum bronze series. used in many heavy-duty applications and recommended for high load, high wear applications requiring tensile strength, good ductility, weldability, or excellent resistance to fatigue and deformation under overload conditions. in addition to good anti-friction properties, the metal exhibits low scaling rates under atmospheric conditions, resistance to seawater corrosion, low oxidation rates at high temperatures, and low reactivity with combustion exhaust by-products.
C95400 Bronze Washer Typical Applications
Automotive Thrust Washer
Weld Guns
Fasteners
Nuts, Large Hold Down Screws
Industrial Oilless Washer
Bushings, Worm Gears, High Strength Clamps, Gears, Valves, Pickling Hooks, Bearing Segments for the Steel Industry, Spur Gears, Heavily Loaded Worm Gears, Bearings, Pawl, Valve Bodies, Landing Gear Parts, Machine Parts, Pressure Blocks for the Steel Industry, Valve Seats, Valve Guides, Pump Parts, Wear Plates, Gibs, Slides, Worm Wheels, Plungers
Marine
Ship Building, Covers for Marine Hardware
Ordnance
Government Fittings
C95400 Bronze Washer Chemical Composition
| Cu% | Sn% | Pb% | Zn% | Fe% | Ni% | Sb% | P% | S% | AI% | Mn% | Si% |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 83.00 Min | N/A | N/A | N/A | 3.00- 5.00 | 1.5 | N/A | N/A | N/A | 10.00- 11.50 | 0.50 | N/A |
C95400 Bronze Washer Mechanical Properties
| Mechanical – Aluminum Bronze | ||
|---|---|---|
| Tensile Strength, min | 85 ksi | 586 MPa |
| Yield Strength @ .5% ext under load min | 32 ksi | 221 MPa |
| Elongation in 2 in. or 50 mm min, % | 12 | |
| Brinell Hardness | 170 typical Bhn (3000kg) | |
| Machinability Rating | 60% | |
C95400 Bronze Washer Physical Properties
| US Customary | Metric | |
|---|---|---|
| Melting Point-Liquidus | 1900 F | 1038 C |
| Melting Point-Solidus | 1880 F | 1027 C |
| Density | 0.269 lb/in3 @ 68 F | 7.45 gm/cm3 @ 20 C |
| Specific Gravity | 7.450 | 7.45 |
| Electrical Resistivity | 80.20 ohms-cmil/ft @ 68 F | 13.33 microhm-cm @ 20 C |
| Electrical Conductivity | 130 %IACS @ 68 F | 0.075 MegaSiemens/ cm @ 20 C |
| Thermal Conductivity | 33.90 Btu ft/ (hr ft2 oF) @ 68 F | 58.7 W/m oK @ 20 C |
| Coefficient of Thermal Expansion | 90 10-6 per oF (68-572 F) | 16.2 10-6 per oC (20-300 C) |
| Specific Heat Capacity | 0.10 Btu/lb/oF @ 68 F | 419.0 J/kg oK @ 293 K |
| Modulus of Elasticity in Tension | 15500 ksi | 107000 MPa |
| Magnetic Permeability* | 1.270 | 1.27 |
| *Field Strength 16 kA/m | ||
C95400 Bronze Washer Fabrication Properties
| Joining Technique | Suitability |
|---|---|
| Soldering | Good |
| Brazing | Good |
| Oxyacetylene Welding | Not Recommended |
| Gas Shielded Arc Welding | Good |
| Coated Metal Arc Welding | Good |

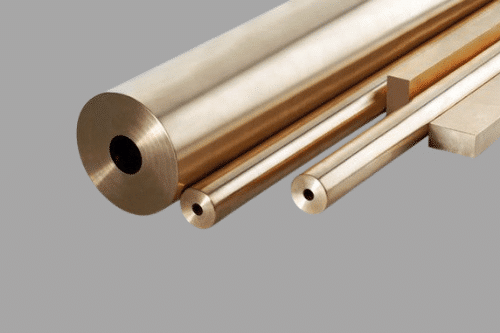

C93200 Bronze Washer Typical Applications
Industrial
Thrust Washers, Pumps, Bushings, Machine Parts, Main Spindle Bearings, Machine Tool Bearings, Bearings for Cranes, Trunion Bearings, Roll Neck Bearings, Rolling Mill Bearings, Linkage Bushings for Presses, Fuel Pump Bushings, Water Pump Bushings, Diesel Engine Wrist Pin Bushings, Forging Press Toggle Lever Bearings, Hydraulic Press Stuffing Box, Hydraulic Press Main Lining, Pump Impellers, General Purpose Bushings, Fittings, Pump Fixtures, Insert Bearings, Bearings.
Automotive
Automotive Fittings
Fasteners
Washers
C93200 Bronze Washer Chemical Composition
| Cu% | Sn% | Pb% | Zn% | Fe% | Ni% | Sb% | P% | S% | AI% | Mn% | Si% |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 81.00- 85.00 | 6.30- 7.50 | 6.00- 8.00 | 2.00- 4.00 | 0.20 | *1.00 | 0.35 | 1.5 | 0.08 | 0.005 | N/A | 0.005 |
*In determining copper minimum, copper may be calculated as copper plus nickel
C93200 Bronze Washer Mechanical Properties
| Tensile Strength. min | 35 ksi | 241 MPa |
| Yield Strength @ .5% ext under load min | 20 ksi | 138 MPa |
| Elongation in 2 in. or 50 mm min, % | 10 | |
| Brinell Hardness,min | N/A | |
| Machinability Rating | 70% | |
C93200 Bronze Washer Physical Properties
| US Customary | Metric | |
|---|---|---|
| Melting Point-Liquidus | 1790 °F | 977 °C |
| Melting Point-Solidus | 1570 °F | 854 °C |
| Density | 0.322 lb/in 3 @ 68 °F | 8.91 gm/cm 3 @ 20 °C |
| Specific Gravity | 8.910 | 8.91 |
| Electrical Resistivity | 85.90 ohms-cmil/ft @ 68 °F | 14.29 microhm-cm @ 20 °C |
| Electrical Conductivity | 12% IACS @ 68 °F | 0.07 MegaSiemens/cm @ 20 °C |
| Thermal Conductivity | 33.60 Btu/sq ft/ft hr/°F @ 68 °F | 58.2 W/m @ 20 °C |
| Coefficient of Thermal Expanision | 10 ⋅ 10-6 per °F (68-212 °F) | 18.0⋅ 10-6 per °C (20-100 °C) |
| Specific Heat Capacity | 0.090 Btu/lb/°F @ 68 °F | 377.1 J/kg @293 °C |
| Modulus of Elasticity in Tension | 14500 ksi | 100000 MPa |
| Magnetic Permeability* | N/A | N/A |
| *Field Strength 16 kA/m | ||
C93200 Bronze Washer Fabrication Properties
| Joining Technique | Suitability |
|---|---|
| Soldering | Excellent |
| Brazing | Good |
| Oxyacetylene Welding | Not Recommended |
| Gas Shielded Arc Welding | Not Recommended |
| Coated Metal Arc Welding | Not Recommended |

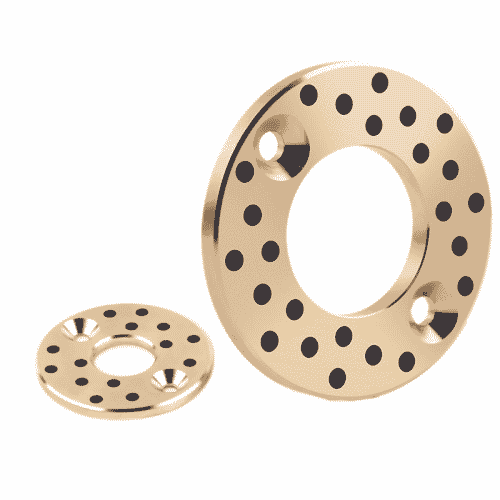

Bronze Thrust Washer with solid lubricant plug (graphite)
① Solid lubricant film
② Solid lubricant plug
③ Bronze backing
- Bronze Thrust Washer Provides Long-Term Operation Without Maintenance;
- Thrust Washer Suitable For High Static And Dynamic Loads;
- Oilless Washers With Low And Smooth Coefficient Of Friction And No Stick-Slip Effects;
- Bronze Thrust Washersuitable For Dirty, Corrosive, Shock, And Edge Loads;
- The Base Bronze Thrust Washers Material Has Good Shock-Absorbing Ability;
- Bronze Thrust Washer Can Be Used Over A Wide Temperature Range;
- Bronze Thrust Washer Suitable For Reciprocating, Rotating, And Oscillating Motion With An Initial Frequency
- Thrust Washers The Complexity Of The Formation Of An Oil Film;
- Bronze Thrust Washer Low Wear And Long Service Life.
Oilless Washer, Self-lubricating
| Base Material: | Special Brass |
| Self-lubricating: | Yes |
| Lubricant: | Graphite |
| Surface Pressure P: | 100 N/mm² |
| Sliding speed v: | 30 m/min |
| P*v-value: | 200 N/mm² x m/min |
| Operating temperature: | -50°C / +200°C (max. 300°C) |
| Friction coefficient: | 0,07 |
Oil-Free Washers Size Chart
| Article name | Shaft diameter | Inner diameter d | Outer diameter D | D1 | l | r | M (ISO 10642) |
| Oilless Bronze Thrust Washer 10 | 10 | 10,2 | 30 | 20 | 3 | 0,5 | 2xM3 |
| Oilless Bronze Thrust Washer 12 | 12 | 12,2 | 40 | 28 | 3 | 0,5 | 2xM3 |
| Oilless Bronze Thrust Washer 13 | 13 | 13,2 | 40 | 28 | 3 | 0,5 | 2xM3 |
| Oilless Bronze Thrust Washer 14 | 14 | 14,2 | 40 | 28 | 3 | 0,5 | 2xM3 |
| Oilless Bronze Thrust Washer 15 | 15 | 15,2 | 50 | 35 | 3 | 1 | 2xM3 |
| Oilless Bronze Thrust Washer 16 | 16 | 16,2 | 50 | 35 | 3 | 1 | 2xM3 |
| Oilless Bronze Thrust Washer 18 | 18 | 18,2 | 50 | 35 | 3 | 1 | 2xM3 |
| Oilless Bronze Thrust Washer 20 | 20 | 20,2 | 50 | 35 | 5 | 1 | 2xM5 |
| Oilless Bronze Thrust Washer 25 | 25 | 25,2 | 55 | 40 | 5 | 1 | 2xM5 |
| Oilless Bronze Thrust Washer 30 | 30 | 30,2 | 60 | 45 | 5 | 1 | 2xM5 |
| Oilless Bronze Thrust Washer 35 | 35 | 35,2 | 70 | 50 | 5 | 1 | 2xM5 |
| Oilless Bronze Thrust Washer 40 | 40 | 40,2 | 80 | 60 | 7 | 2 | 2xM6 |
| Oilless Bronze Thrust Washer 45 | 45 | 45,3 | 90 | 67,5 | 7 | 2 | 2xM6 |
| Oilless Bronze Thrust Washer 50 | 50 | 50,3 | 100 | 75 | 8 | 2 | 4xM6 |
| Oilless Bronze Thrust Washer 55 | 55 | 55,3 | 110 | 85 | 8 | 2 | 4xM6 |
| Oilless Bronze Thrust Washer 60 | 60 | 60,3 | 120 | 90 | 8 | 2 | 4xM8 |
| Oilless Bronze Thrust Washer 65 | 65 | 65,3 | 125 | 95 | 8 | 2 | 4xM8 |
| Oilless Bronze Thrust Washer 70 | 70 | 70,3 | 130 | 100 | 10 | 2 | 4xM8 |
| Oilless Bronze Thrust Washer 75 | 75 | 75,3 | 140 | 110 | 10 | 2 | 4xM8 |
| Oilless Bronze Thrust Washer 80 | 80 | 80,3 | 150 | 120 | 10 | 2 | 4xM8 |
| Oilless Bronze Thrust Washer 90 | 90 | 90,5 | 170 | 140 | 10 | 2 | 4xM10 |
| Oilless Bronze Thrust Washer 100 | 100 | 100,5 | 190 | 160 | 10 | 2 | 4xM10 |
| Oilless Bronze Thrust Washer 120 | 120 | 120,5 | 200 | 175 | 10 | 2 | 4xM10 |
