1. The Core Problem: Why Standard Bearings Fail Under Heavy Loads
In heavy-duty pivot systems, traditional rolling-element bearings often reach their breaking point due to three critical factors:
-
Shock Load Fracture: Point-contact bearings crack under the high-frequency vibrations found in mining and construction.
-
Maintenance Exhaustion: Frequent regreasing in hard-to-reach pivots costs thousands in labor and grease.
-
Environmental Corrosion: Saltwater and abrasive grit turn standard steel sleeves into seized liabilities.

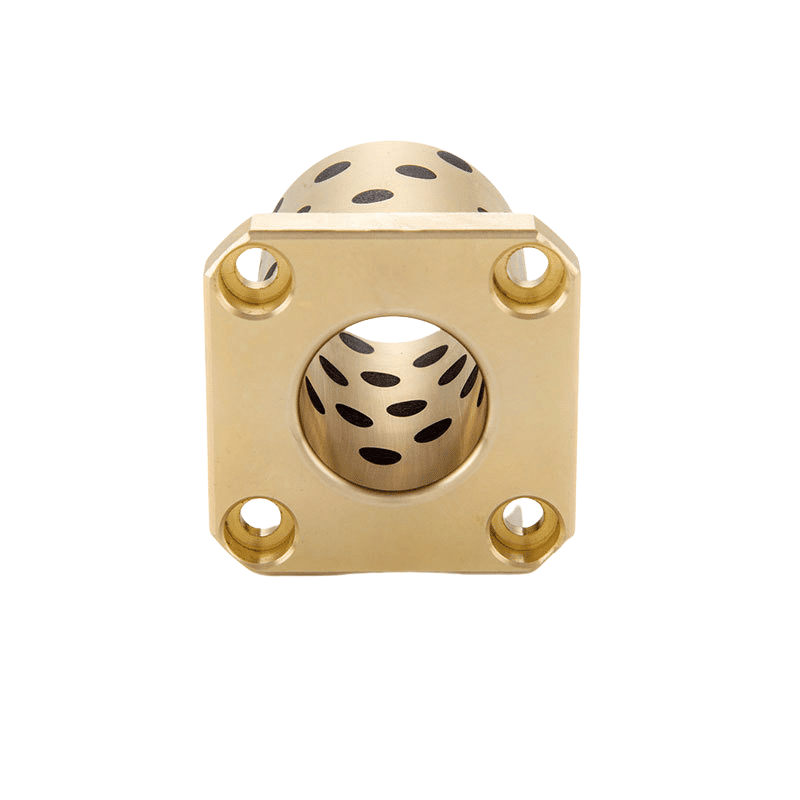

Our Flanged Bronze Bushings are designed to be the “Final Upgrade”—eliminating these failure points through superior material science and integrated axial control.
2. Technical Data: The 5.7x Load-Bearing Advantage
We don’t just claim reliability; we prove it through rigorous material science. Our proprietary C95400 Aluminum Bronze + Solid Graphite technology is engineered to outperform standard industry alternatives in extreme-load environments.
Comparative Technical Specifications
| Technical Metric | Standard Tin Bronze (C93200 / SAE 660) | Our High-Strength C95400 + Graphite | Engineering Impact |
| Max. Allowable Static Pressure (P ) |
~30 MPa (4,350 PSI) | 172 MPa (25,000 PSI) | 5.7x Higher Capacity; prevents deformation under peak loads. |
| Coefficient of Friction (CoF) | 0.15 – 0.25 (Boundary Lubricated) | 0.05 – 0.12 (Self-Lubricating) | Lower startup torque and reduced heat generation. |
| Max. Operating Temp | 150°C (302°F) | 300°C (Std) / 450°C (Custom) | Maintains structural integrity in high-heat environments. |
| Brinell Hardness (HB) | ~70 HB | ~170 HB | Superior resistance to abrasive wear and surface indentation. |
| Corrosion Resistance | Moderate | Superior (Alumina Passivation) | Self-healing aluminum oxide layer resists oxidation and salt spray. |
Engineering Analysis: Why 5.7x Matters
1. Eliminating the “Oil Film Failure” Risk
Standard C93200 bronze relies on a liquid oil film. Once the pressure exceeds 30-35 MPa, this film ruptures, leading to metal-to-metal contact and catastrophic galling. Our C95400 system utilizes solid graphite lubrication, which forms a physical slippery barrier that cannot be “squeezed out” even at 170+ MPa.
2. Compact Design & Safety Redundancy
The 5.7x strength advantage allows engineers to either:
-
Downsize: Reduce the physical footprint of the bearing housing without sacrificing safety.
-
Survive Shocks: Withstand massive instantaneous impact loads that would crush or deform standard bronze sleeves.
3. Integrated Thrust Management
While simple sleeve bearings fail under axial movement, our Integrated Flange Design leverages the high shear strength of C95400. It manages complex axial thrust loads simultaneously with radial loads, ensuring the bushing remains seated and operational where others would be sheared apart.
The Conclusion
By upgrading to our high-strength C95400 technology, you aren’t just buying a component—you are installing a 5.7x safety buffer into your machinery. This translates directly to fewer unplanned outages, zero lubrication maintenance, and a significantly lower Total Cost of Ownership (TCO).
3.Case Study: 8,500+ Hours Maintenance-Free in the Atacama Desert
The Challenge: Rapid Failure in Extreme Conditions
A tier-one copper mine in Chile was forced to replace excavator bucket linkage bushings every 1,500 hours. Standard C93200 tin bronze parts failed due to:
-
“Pounding Out”: Material deformation under extreme breakout forces.
-
Abrasive Wear: Desert dust mixing with grease to create a destructive “grinding paste.”
The Solution: High-Strength Self-Lubricating Technology
We replaced the failing units with 320mm Large-Diameter C95400 Aluminum Bronze + Solid Graphite Flanged Bushings.
-
The 5.7x Advantage: By upgrading to C95400, the allowable static pressure increased from 30 MPa to 172 MPa, providing the structural backbone to resist impact deformation.
-
Dry Lubrication: The integrated graphite matrix eliminated the need for grease, preventing dust accumulation and pin scoring.
The Results:
-
Extended Service Life: Surpassed 8,500 operating hours (a 5.6x increase) with zero manual lubrication.
-
Significant ROI: Saved $140,000 per machine annually by eliminating five unscheduled repair cycles and reducing grease consumption.
-
Structural Integrity: Post-service inspection showed zero flange deformation, proving the alloy’s superior ability to handle complex axial thrust and side-loading.
The Bottom Line:
Our C95400 technology turns a high-wear “weak link” into a maintenance-free asset, even in the world’s harshest environments.
4. Why Our “Maintenance-Free” Design Wins
-
Integrated Graphite Lubrication: Embedded solid lubricants create a micron-level transfer film, ensuring low friction even in “dry-start” conditions.
-
Corrosion-Resistant Marine Grade: Specifically alloyed for marine and dredging environments; it is immune to seawater pitting.
-
Precision Engineering (ISO IT7): Every large-diameter bushing is machined in a single clamping operation to ensure perfect concentricity and perpendicularity of the flange.
5. Expert FAQ: Addressing Your Technical Concerns
Q: Why use a flanged bushing instead of a roller thrust bearing?
A: Roller bearings are prone to “brinelling” (permanent indentations) under shock. Our flanged bushings use surface-to-surface contact, spreading the load across the entire flange area, which provides significantly higher impact resistance and damping.
Q: How do you handle thermal expansion in large-diameter applications?
A: For bushings over 200mm, we provide custom tolerance calculations. Our Aluminum Bronze has a predictable thermal expansion rate, and we engineer the “running clearance” to ensure the pivot never seizes, even at 300°C.
Q: Can you manufacture custom sizes with integrated oil grooves?
A: Yes. While we specialize in self-lubricating graphite plugs, we also offer custom “Double Loop” or “Spiral” oil grooves for systems that require active lubrication or grease cooling.
Q: What is the maximum diameter you can produce?
A: We have the centrifugal casting and vertical CNC capacity to produce flanged bushings up to 800mm in diameter.
6. Ready to Optimize Your Equipment Uptime?
Don’t let pivot failure become a recurring expense. Talk to a tribology expert today for a custom solution tailored to your specific load and environment.
